優點：
1) 全新翻板設計止水效果更好
2) 材質符合飲用水標準
3) 材料經過納米改性，提高產品耐壓性及抗沖擊性能
4) 原料添加抗紫外線吸收劑和抗氧劑，提高產品耐候性，耐老化性能
5) 可水平或垂直安裝
描述：
1) 材質:UPVC,CPVC,PPH,PVDF
2) 尺寸:1/2"-2'';20mm-63mm;DN15-DN50
3) 標準:ANSI,DIN,JIS,CNS
4) 連接:播口或螺紋(NPT,PT,BSPF),熔接
5) 工作壓力:150 PSI
6) 操作溫度:UPVC(5~55℃),CPVC&PPH(5~90℃);PVDF(-20~120℃)
7) 本體顏色:UPVC(深灰色/白色),CPVC(淺灰色),PPH(米黃色),PVDF(象牙色)
8) 小止水壓力≥0.03kg
|

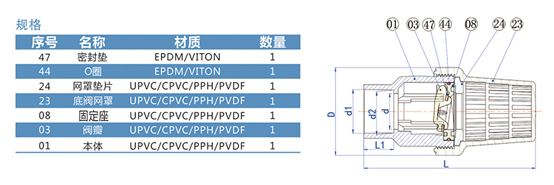

尺寸 |
d |
d1 |
d2 |
D |
L |
L1 |
||||||
|
ANSI |
DIN |
JIS |
CNS |
ANSI |
DIN |
JIS |
CNS |
|||||
|
1/2"(15) |
15 |
21.54 |
20.30 |
22.40 |
22.40 |
21.23 |
20.10 |
21.73 |
21.90 |
54.00 |
109.00 |
22.30 |
|
3/4"(20) |
20 |
26.87 |
25.30 |
26.45 |
26.40 |
26.57 |
25.10 |
25.69 |
25.90 |
63.00 |
137.50 |
25.50 |
|
1"(25) |
25 |
33.65 |
32.30 |
32.55 |
34.50 |
33.27 |
32.10 |
31.70 |
33.90 |
73.50 |
153.00 |
28.60 |
|
1?"(32) |
32 |
42.42 |
40.30 |
38.60 |
42.50 |
42.04 |
40.10 |
37.65 |
41.90 |
84.50 |
181.50 |
32.00 |
|
1?"(40) |
40 |
48.56 |
50.30 |
48.70 |
48.60 |
48.11 |
50.10 |
47.74 |
47.90 |
98.00 |
204.00 |
35.00 |
|
2"(50) |
50 |
60.63 |
63.30 |
60.80 |
60.60 |
60.17 |
63.10 |
59.78 |
59.90 |
119.00 |
239.00 |
38.00 |
|
2?"(65) |
65 |
73.38 |
75.30 |
76.60 |
76.70 |
72.85 |
75.10 |
75.68 |
75.90 |
165.00 |
235.50 |
47.00 |
|
3"(80) |
75 |
89.31 |
90.44 |
89.60 |
89.70 |
88.70 |
89.96 |
88.55 |
88.90 |
172.00 |
256.00 |
53.00 |
|
4"(100) |
95 |
114.76 |
110.52 |
114.70 |
115.00 |
114.10 |
109.98 |
113.60 |
113.80 |
205.00 |
321.50 |
62.00 |
|
6"(150) |
150 |
168.83 |
160.50 |
166.00 |
166.20 |
168.00 |
160.20 |
164.63 |
164.60 |
290.00 |
445.00 |
86.50 |
