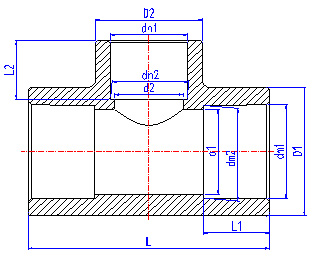

異三通 (SxSxS)
|
尺寸 |
D |
d |
dn1 |
dn2 |
L1 |
L |
||
|
min |
max |
min |
max |
|||||
|
DN15 |
26.50 |
17.05 |
19.00 |
19.50 |
18.80 |
19.30 |
15.00 |
33.00 |
|
DN20 |
33.00 |
21.80 |
23.80 |
24.40 |
23.50 |
24.10 |
16.50 |
36.00 |
|
DN25 |
42.20 |
28.70 |
30.70 |
31.30 |
30.40 |
31.00 |
18.60 |
40.20 |
|
DN32 |
53.00 |
36.60 |
38.70 |
39.30 |
38.30 |
38.90 |
21.00 |
45.00 |
|
DN40 |
66.00 |
46.60 |
48.70 |
49.30 |
48.30 |
48.90 |
24.00 |
51.00 |
|
DN50 |
83.50 |
59.40 |
61.60 |
62.20 |
61.10 |
61.70 |
28.00 |
59.00 |
|
DN65 |
95.00 |
70.30 |
73.20 |
74.00 |
71.90 |
72.70 |
31.50 |
67.00 |
|
DN80 |
113.50 |
84.90 |
87.80 |
88.80 |
86.40 |
87.40 |
36.00 |
77.00 |
|
DN100 |
138.50 |
104.30 |
107.30 |
108.50 |
105.80 |
106.80 |
42.00 |
90.00 |
